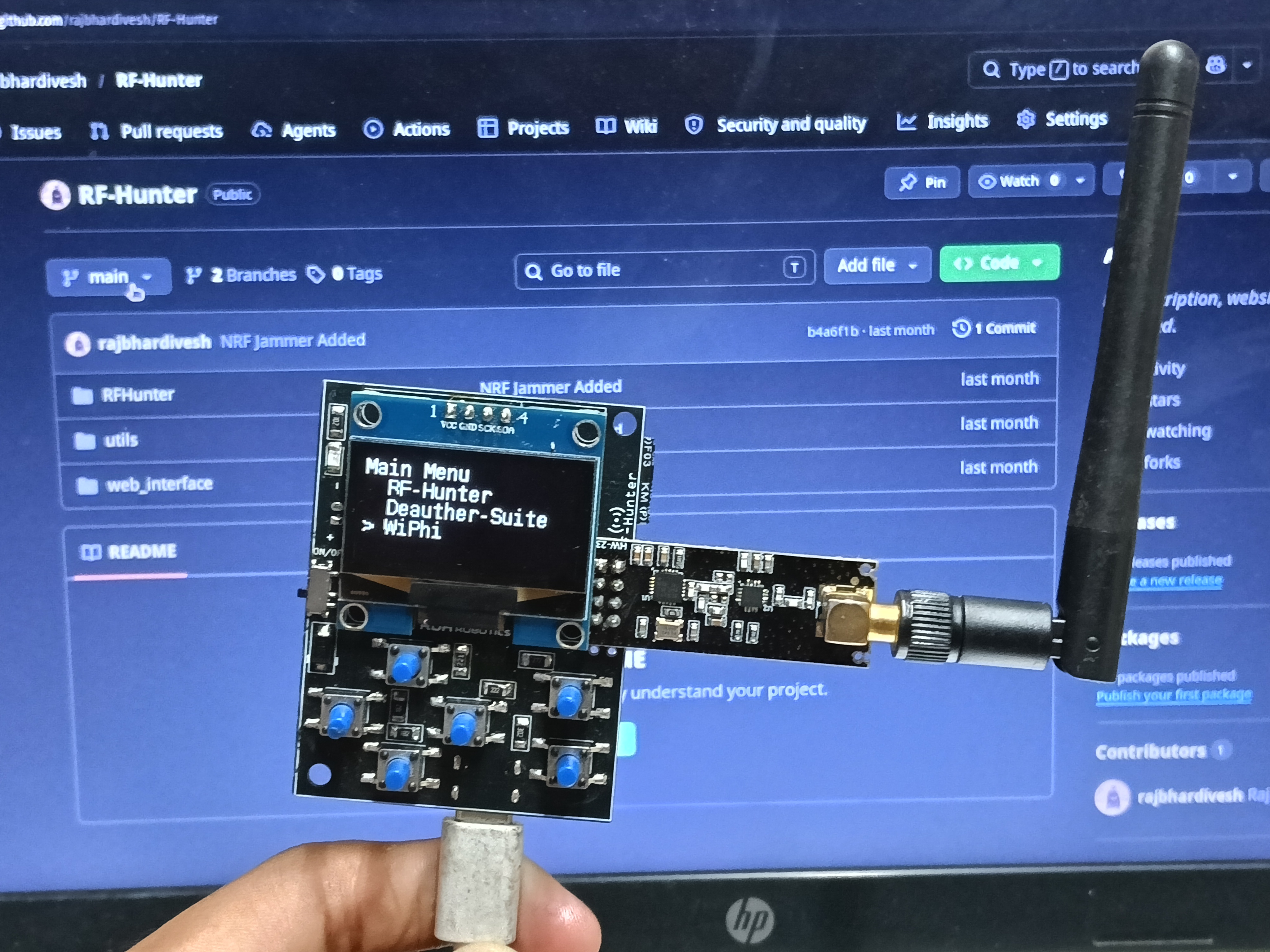

RF-Hunter

Wireless Penetration Research Platform

A compact, self-contained ESP8266 + nRF24L01 device with OLED display and hardware keypad. Three independent tools — RF jammer, Wi-Fi deauther, and captive portal harvester — unified under a single launcher UI. Built for hands-on wireless security research.

⚡ Standalone — No Laptop 🔓 Open Firmware 📱 Pocket-Sized 🖥️ Web + OLED Dual UI 👻 Evil Twin AP Clone 🚫 Deauth Attack Engine 🎣 Captive Portal Phish 📡 BLE + Zigbee + Wi-Fi Jam

🛒 BUY NOW

ESP8266 + nRF24L01

Wi-Fi Deauther

Captive Portal

RF Jammer Mode

01 // Hardware

MCU

ESP8266

80/160 MHz, 2.4 GHz Wi-Fi, WIFI_AP_STA mode

RF Module

nRF24L01+

2.4 GHz, 125 channels, 2 Mbps, PA+LNA variant

Display

SH1106

128×64 OLED, I²C, 0.96"

Input

ADC Keypad

6-button voltage-divider — UP DOWN LEFT RIGHT ENTER BACK

Storage

EEPROM

Persistent PW vault, survives power cycle

Pins (nRF)

CE 16 / CSN 15

OLED SDA 4 / SCL 5

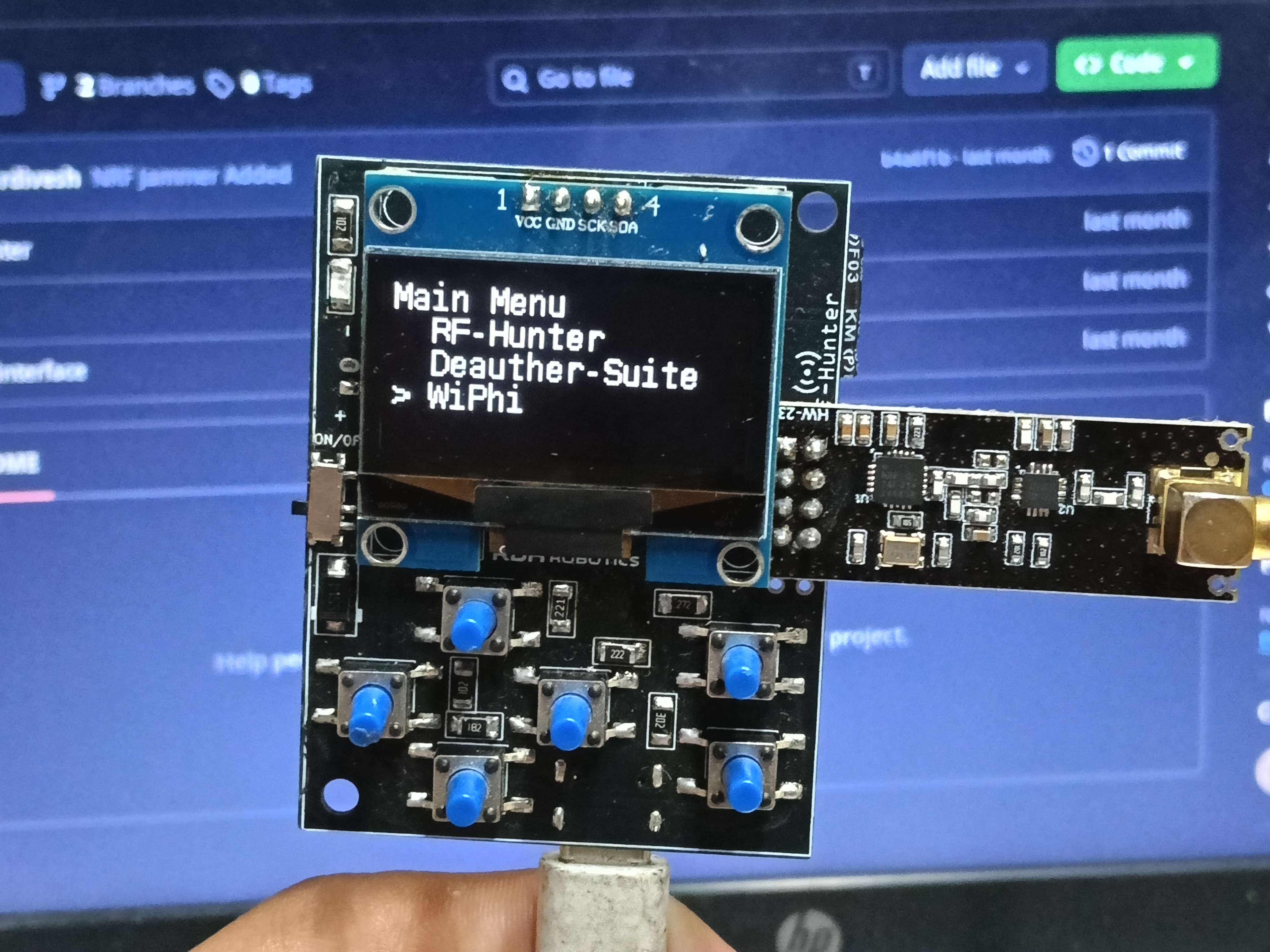

02 // Launcher — Three-Tool Architecture

MODE 01

RF-Hunter

nRF24 constant carrier jammer. BLE + all 2.4 GHz or Wi-Fi channels only.

MODE 02

Deauther Suite

spacehuhn esp8266_deauther engine. Scan, select, deauth, beacon flood, probe attack.

MODE 03

WiPhi

Deauth + EvilTwin + captive portal credential harvester with EEPROM vault.

Hold BACK 5 seconds from any mode → returns to launcher main menu. Each tool initialises and tears down its own WiFi stack independently.

03 // Feature Deep Dive

📡

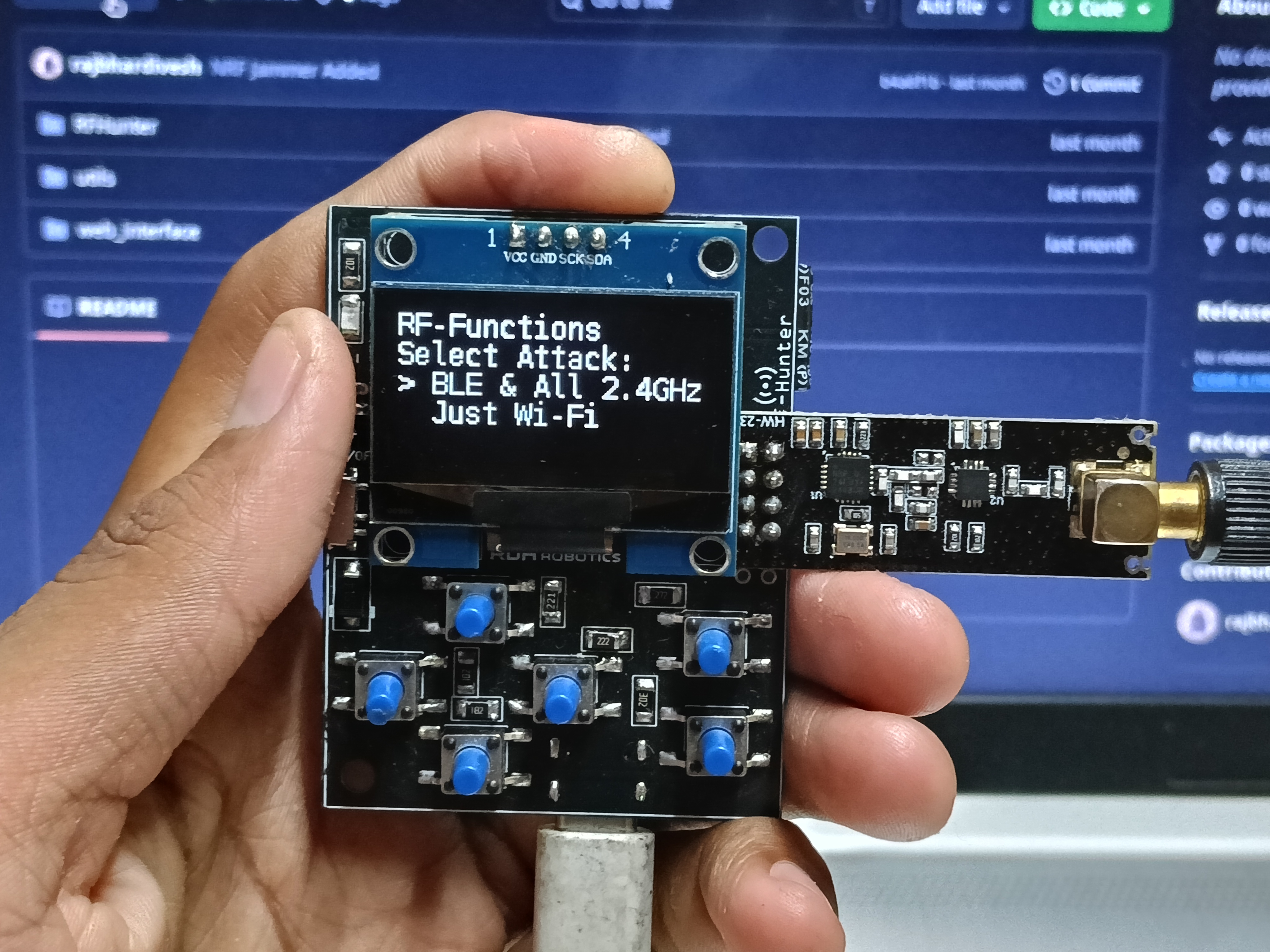

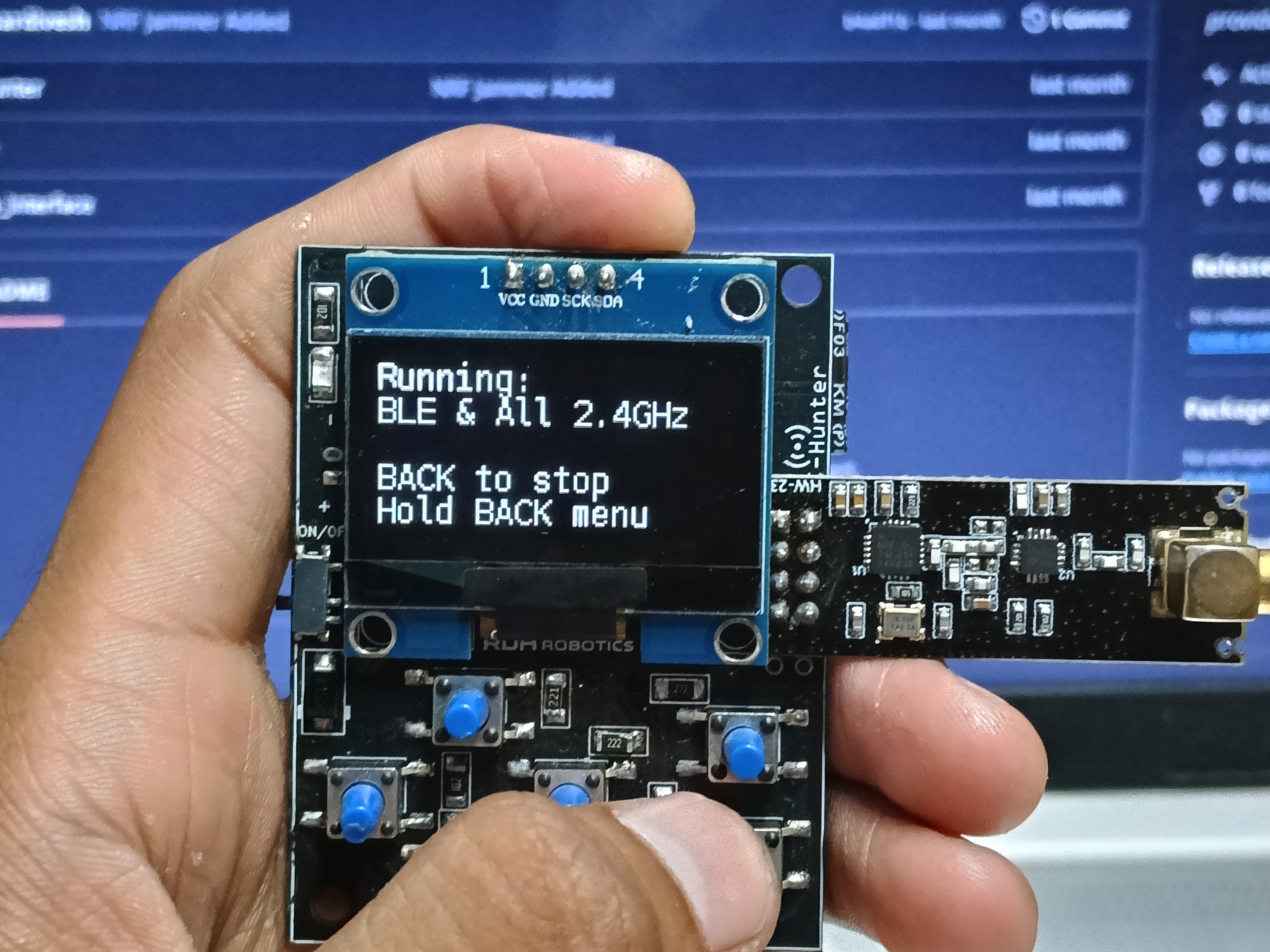

RF-Hunter — 2.4 GHz Jammer

Uses nRF24L01 constant carrier mode to saturate the 2.4 GHz band.

Full sweep: all 125 channels (BLE, Zigbee, Wi-Fi, proprietary)
Targeted sweep: Wi-Fi channels 1–11 only (2412–2462 MHz)
RF24_PA_MAX + RF24_2MBPS for maximum interference power
CRC disabled, AutoAck off — pure carrier output
Plug-in mode table: add new attack modes with 3 lines of code

⚡

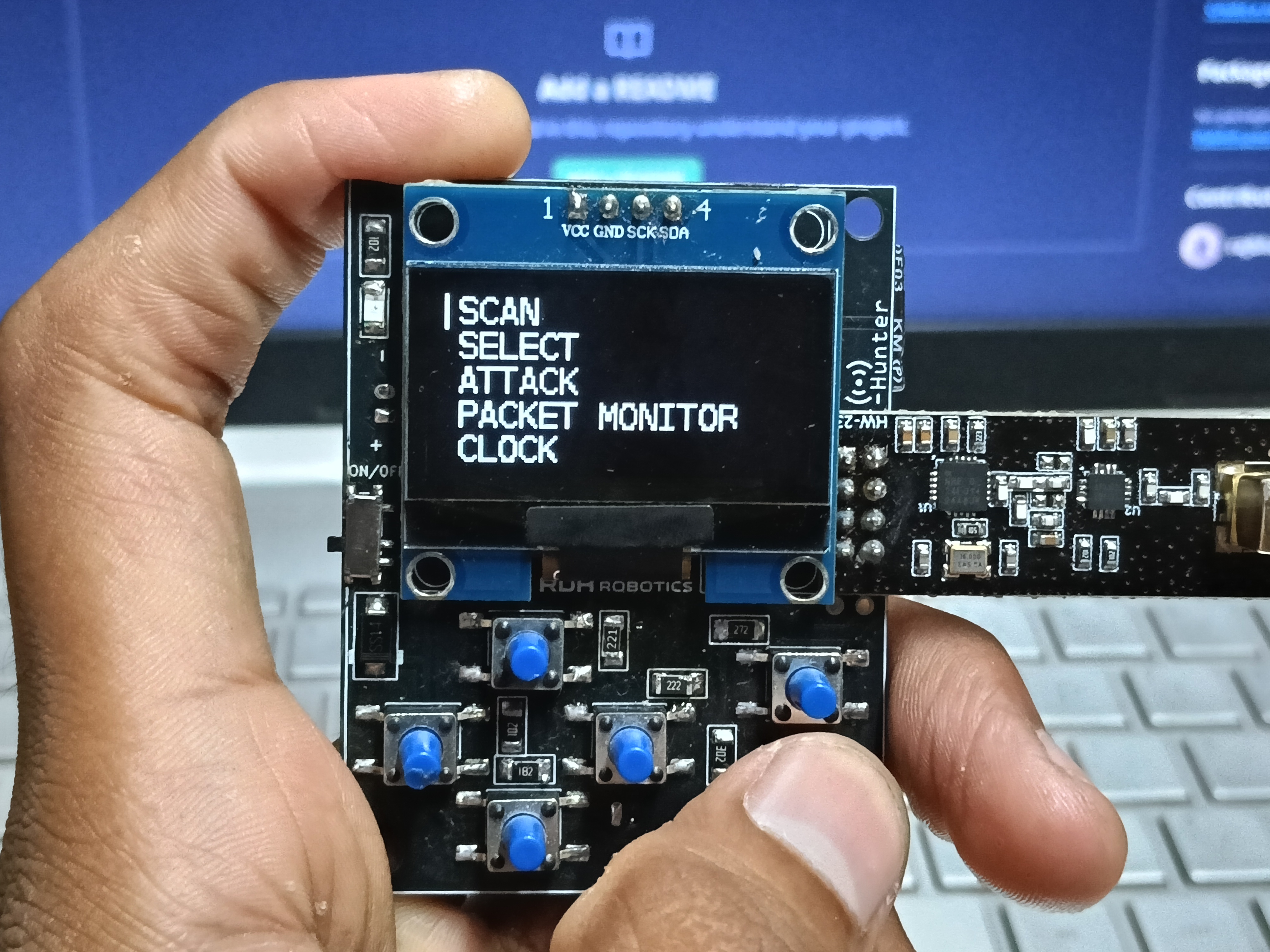

Deauther Suite

Full spacehuhn deauther engine integrated as a launcher mode.

Scan nearby APs and stations
Targeted deauthentication (802.11 type C0/A0 frames)
Beacon flood and probe attack
Web UI at 192.168.4.1 for remote control
CLI over Serial for scripting
LittleFS config persistence, autosave
OLED display driven by DisplayUI module

🎣

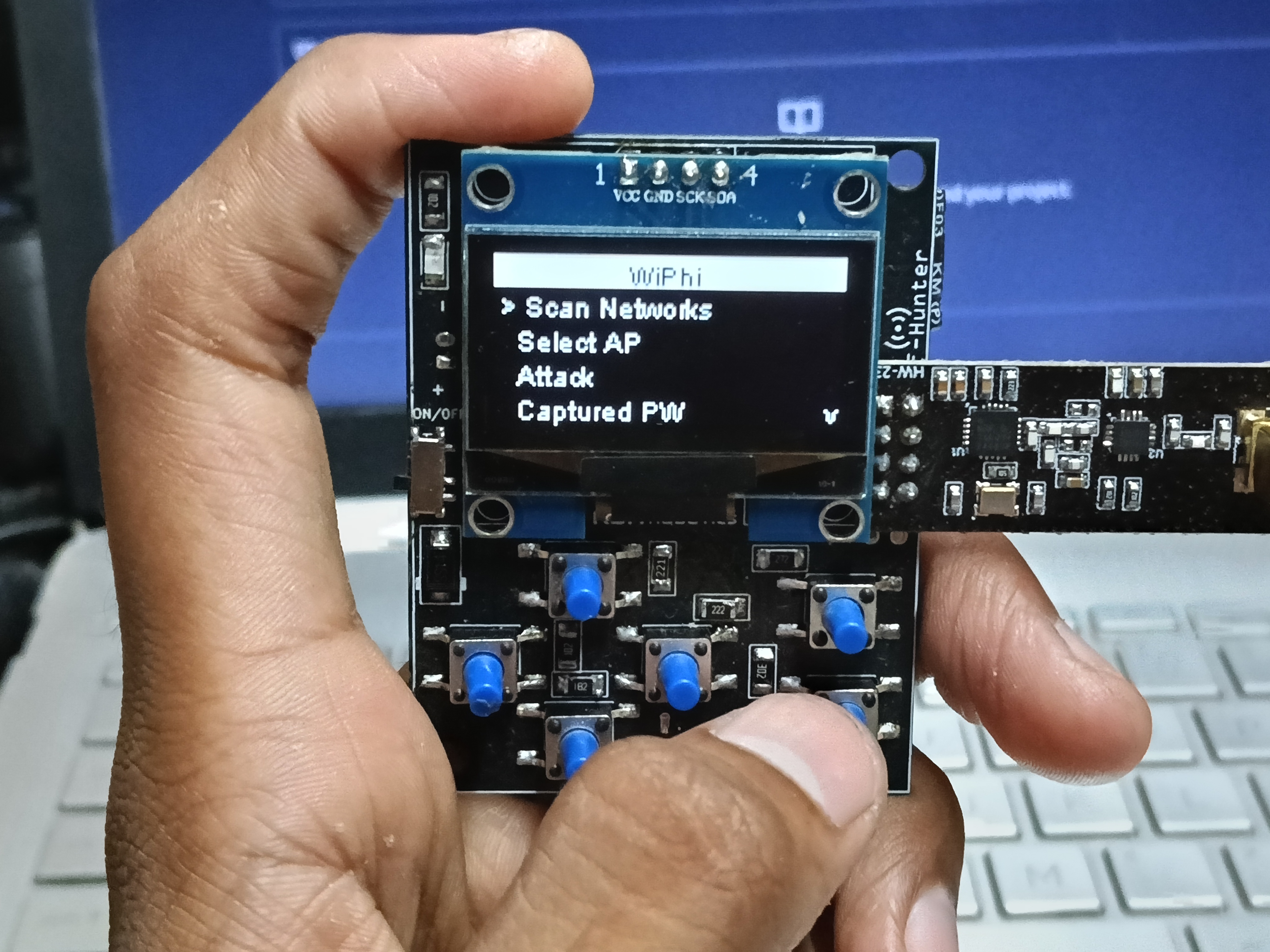

WiPhi — Captive Portal Harvester

EvilTwin AP clones the target SSID, serves a convincing firmware-update phishing page to connected victims.

Scans and lists up to 16 nearby APs with channel + RSSI
One-click AP select → deauth target → victim reconnects to clone
Captive portal hijacks all HTTP traffic via DNSServer wildcard
Password verification: attempts real WPA2 auth to confirm
OLED shows live client count + packet count
Auto-jumps to Captured screen on success

💾

EEPROM Password Vault

Captured credentials persist across power cycles.

5 slots — SSID (32 bytes) + password (64 bytes) each
Magic byte detects first boot, auto-formats on corruption
WiPhi vault offset at 2000+ to avoid deauther EEPROM collision
OLED browse: scroll list of saved entries
Per-slot delete: BACK button on detail screen
Web admin panel also displays captured password

🖥️

OLED UI — Unified Design

All three tools share the same UI language: inverted title bar, arrow-only cursor, no fill on selected items.

128×64 px, ArialMT_Plain_10 font
Title bar: filled rect, white-on-black centred label
Menu cursor: ">" prefix only — no invert, no fill
Scrollable lists with ^ / v indicators

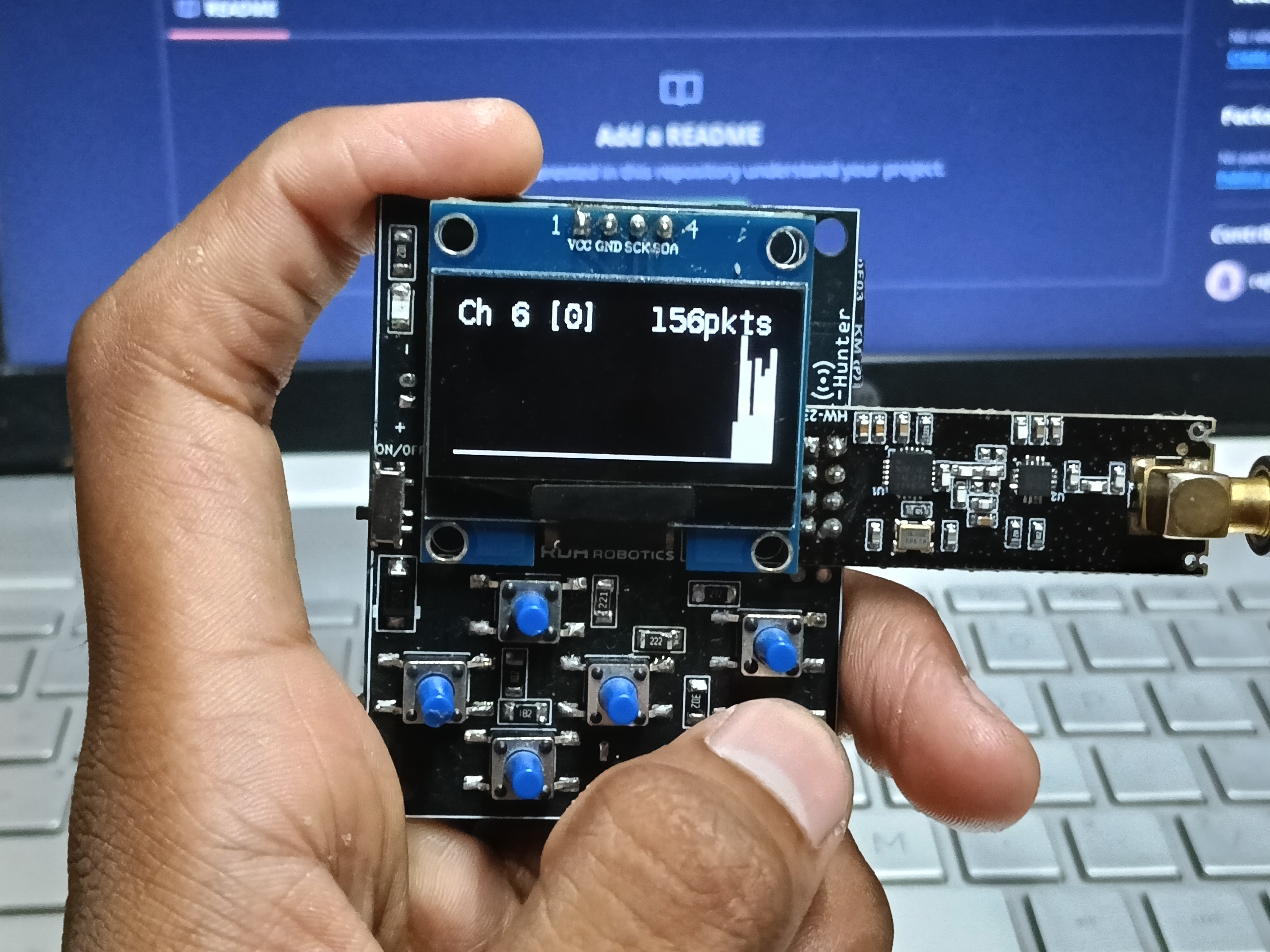

Live status: deauth packet counter, client count
Animated scan progress bar during WiFi scan

🌐

Web Admin UI

Parallel web interface — works simultaneously with OLED. Connect to WiPhi_34732 (pass: d347h320) then open 192.168.4.1/admin.

AP scan table with Select button per entry
Start/Stop Deauth and EvilTwin buttons
Live captured password display
Victim-facing: convincing router firmware-update page
Wrong PW: 4-second redirect, try again loop
Correct PW: 15-second verification progress bar

04 // Bonus Tool — RF Chat

💬

nRF24 Mesh Chat

Standalone sketch. Point-to-point or group text chat over raw nRF24 radio. No Wi-Fi, no internet.

5-digit Room ID → shared nRF24 pipe address
3-char username selection on-device
Split OLED: left = message log, right = on-screen keyboard
2-page keyboard: letters / numbers + emoji (:) :( ;) :D)
Join/leave packets broadcast to all devices on same room ID
Up to N devices per room — no pairing, no handshake

📻

RF Chat — Technical

32-byte packet format over nRF24, channel 90 (outside common Wi-Fi interference).

Packet: [type 1B] [name 3B] [text 28B]
Types: M=message, J=join, L=leave
Pipe address derived from Room ID: 'R' + first 4 digits
RF24_1MBPS, CRC_8, PA_MAX
Keyboard: 7 cols × 4 rows + action row [MNU][SND][DEL]
BACK button = instant delete, no keyboard navigation

05 // Who Is This For

Buyers

Ready-to-use hardware, no soldering required
Three tools in one device — RF jammer, deauther, harvester
Standalone — no laptop, no phone needed
Pocket-sized, battery-friendly
Web interface for remote operation
EEPROM stores results after power-off
Open firmware — fully hackable

Researchers

Full source — every layer visible and modifiable
Plugin table for RF modes: add in 3 steps
Launcher AppMode enum: drop in new tools cleanly
Promiscuous / scan mode handled correctly (no conflict)
EEPROM layout documented, WiPhi offset avoids deauther region
Dual-stack: OLED + Web run simultaneously
spacehuhn deauther engine intact and unmodified

Testers

Animated scan progress — see it working in real time
Live deauth packet counter on OLED
Live client count on EvilTwin AP
Auto-jump to Captured screen on credential harvest
Hold BACK 5s = safe exit from any mode
Wrong PW loop with redirect — test portal flow
Serial output on all critical events

⚠

Legal Notice // Authorized Use Only

This device is designed for authorized security research, penetration testing, and educational use only. Using deauthentication attacks, RF jamming, or credential harvesting against networks or devices you do not own or have explicit written permission to test is illegal in most jurisdictions and may result in criminal prosecution. The author assumes no liability for misuse. Always operate within the law and with the informed consent of all affected parties.
